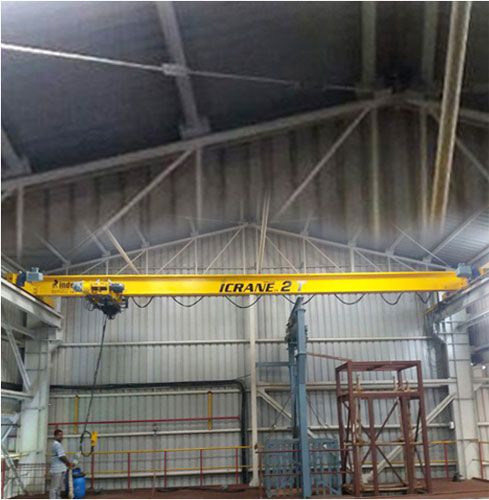

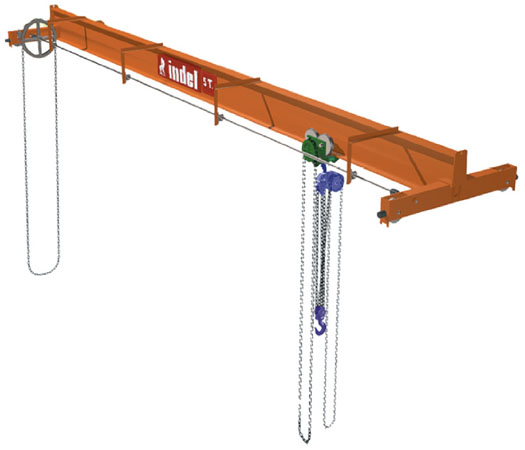

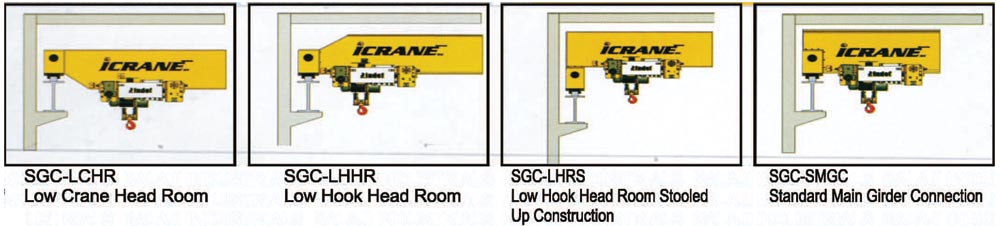

SINGLE GIRDER EOT CRANE

FEATURES

  1. Box girders designed with specialized computer software and optimized with FEA
  2. Welded box girder designed and built for maximum rigidity and optimal deadweight
  3. Engineered to meet application requirements
  4. Choice of end carriage design to suit factory/warehouse structure
  5. Designed with matched hoists and other components to enhance usage experience
  6. Wheel block with low maintenance & lifetime bearing lubrication


BENEFITS
ENGINEERED FOR APPLICATION

  1. Flexible, as can be designed for new or existing structures without extensive change to structures

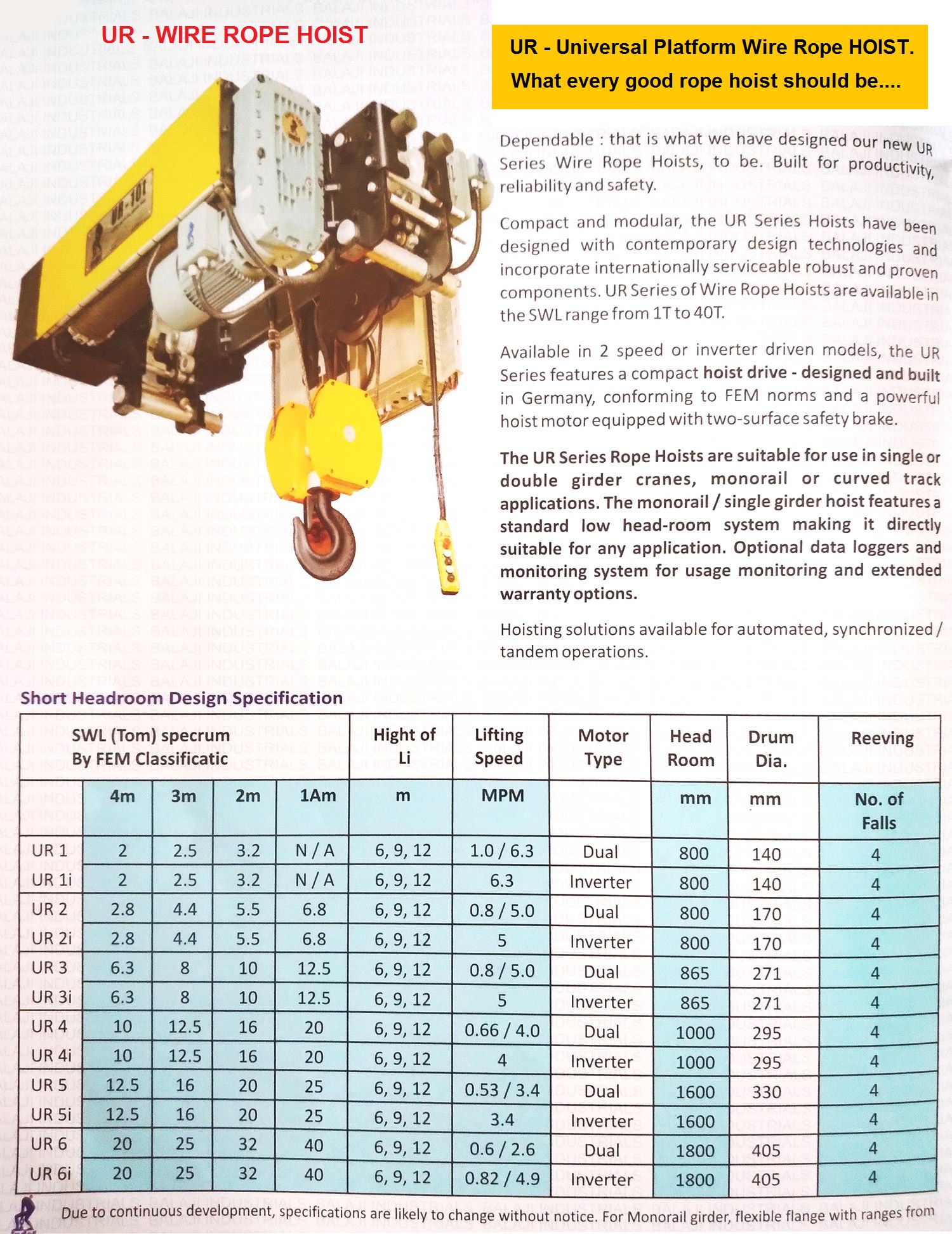

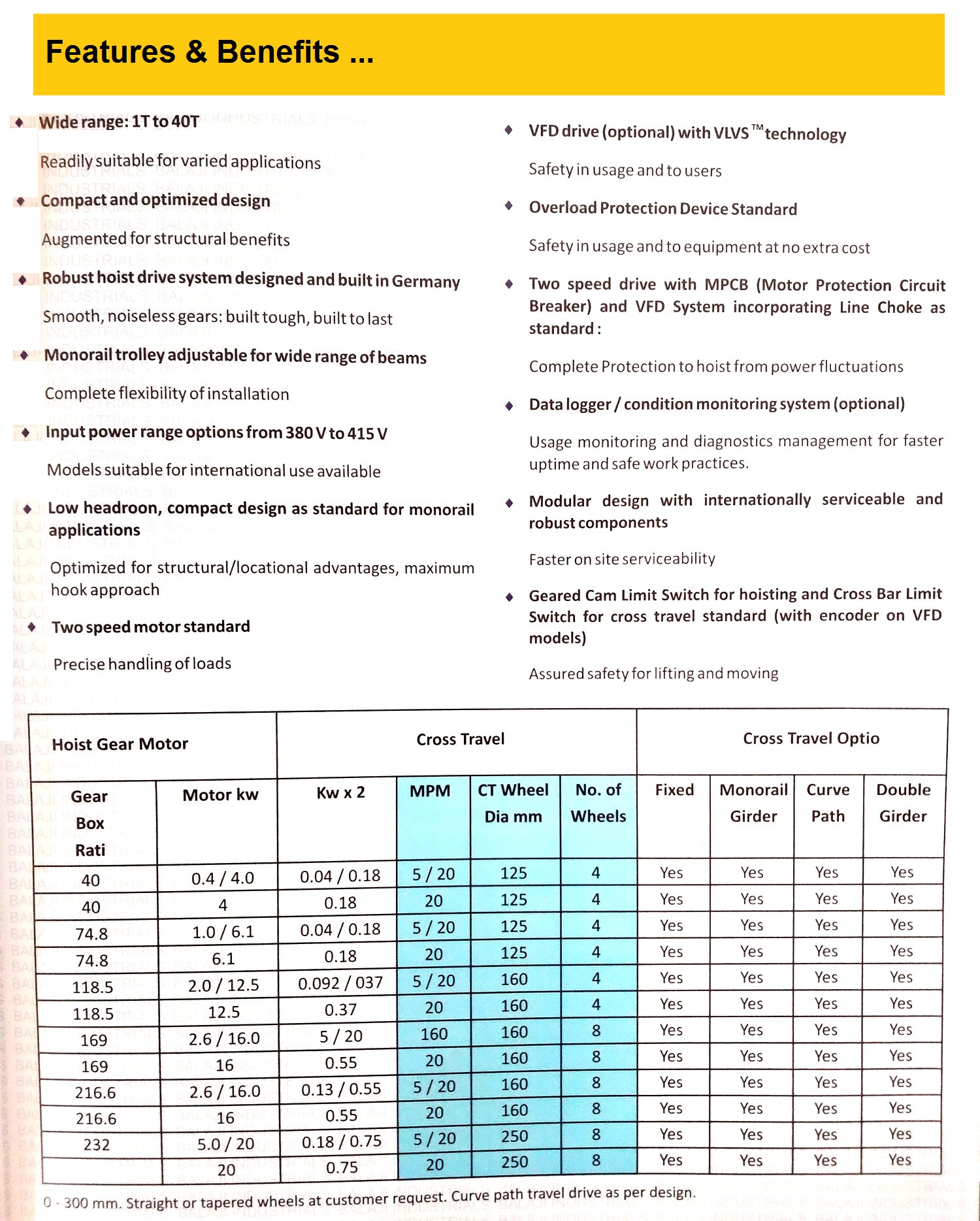

  2. UR series hoist offered as standard features low head room design and favorable hook path
  3. Long life is assured with the combination of wheel-rail
  4. Wide range of options to customize crane for application

HIGH EFFICIENCY

  1. Components selected are proven for long service life and high degree of reliability
  2. Offered with proven components selected for a long service life and high degree of reliability
  3. Standard supply gear box and motor for hoisting and travel applications are designed and built in Germany
  4. Optimized design results in low operation and maintenance and high uptime

CONSISTENT PERFORMANCE

  1. Torsional rigidity of girder and end carriages and favorableutilization of available height and space with state-of-the-art design technology
  2. Component selection and technology devised to be user friendly and for efficient load handling and reduced maintenance

TECHNICAL SPECIFICATIONS

SWL up to

12.5 T

Span Up to

30 meters

Long Travel (LT) Speed Up to

40 m/min

Cross Travel (CT) Speed Up to

20 m/min

Hoisting Speed Up to

8 m/min

Hoisting / Travel Speed

Dual speed offered as standard. VFD (optional)

  1. Wide Range – 1T to 20T
  2. Wheels fitted with sealed ball bearing
  3. Flange adjustability – 50 mm to 305mm
  4. Anti-drop plate and anti-tilting device for protection
  5. Contour trolley wheel design suitable for maximum beam contact on flat or tapered beams
  6. Anti corrosive powder coated finish.
  7. Central load suspension and robust side plates with four wheels divides the load evenly.





  1. Wide Range – 1Tto 10T
  2. Simple & safe load attachment tool
  3. Flange adjustability – 75 mm to 320 mm
  4. Ideal for erection and installation work
  5. Easy two step operation for urgent tasks.

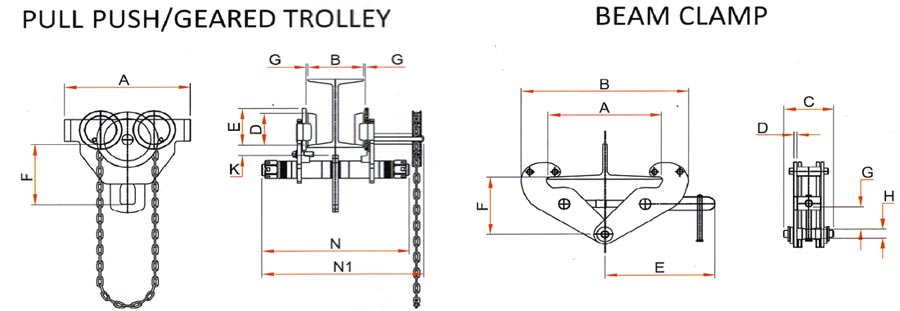

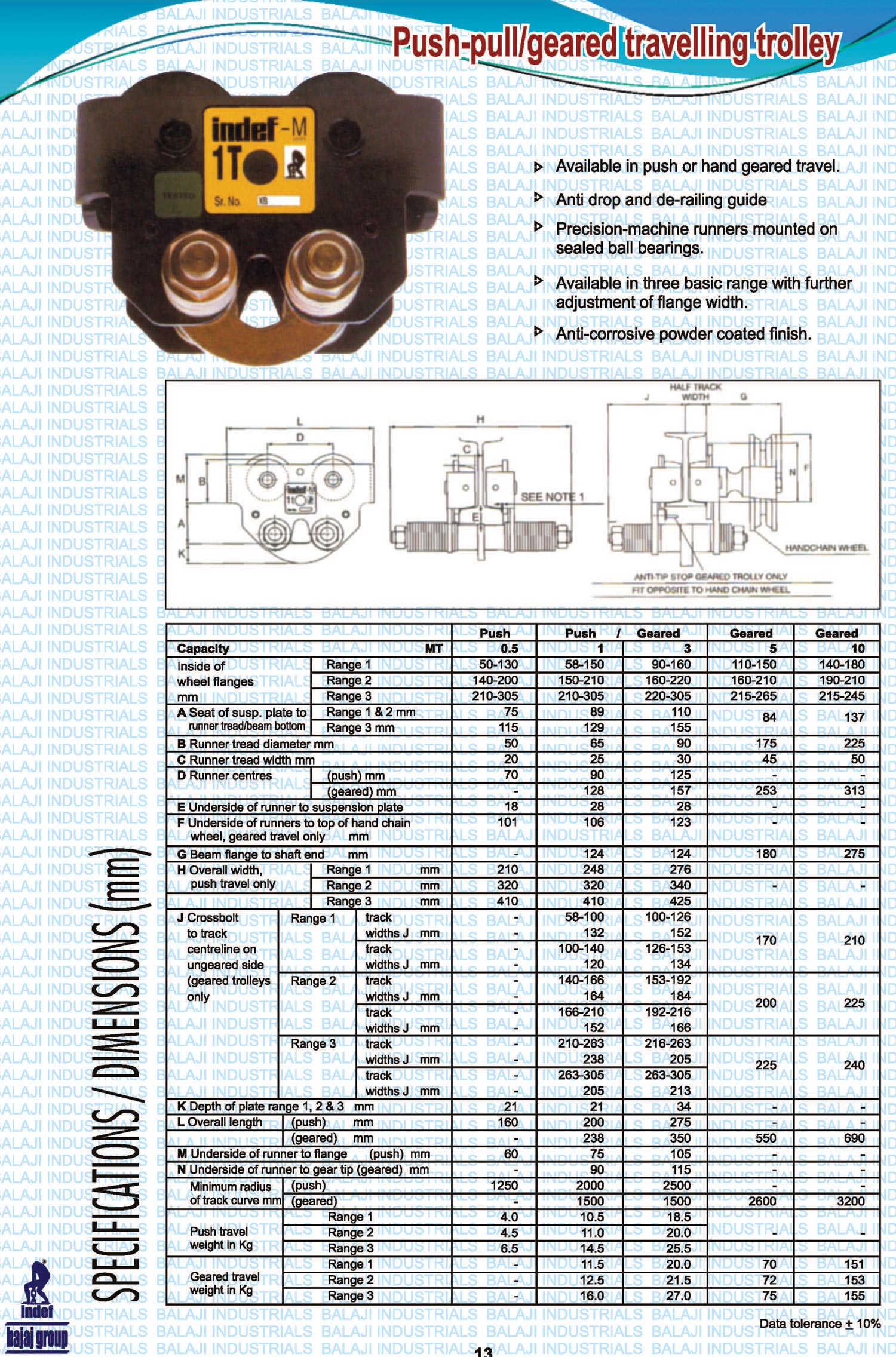

TYPEPush trolley PTM  123510

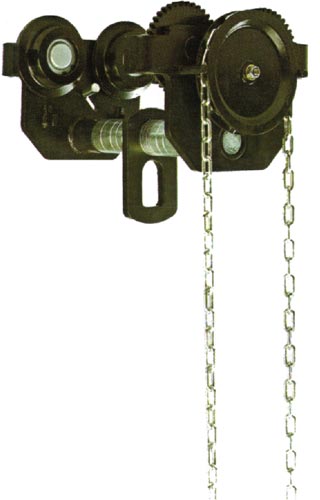

TYPEGear trolley GTM  12351020
Capacity T 12351020
Flange width B min.-max.  R264-20388-203100-203114-203124-203136-203
  R364-30588-305100-305114-305124-305136-305
Min. Curve radius m 0.911.21.31.72.8
A (Dimensions) mm 246276332377389574
D mm 6880100110136175
E mm 8294116127156230
F mm 125150171196285315
G mm 223333
K mm 383840422230
N (KANGE-K2) mm 311327343355403
N1 (RANGE-R2) mm 338349362374480537
Weight PTM kg 10.517.5274148
Weight GTM kg 14.521.5314695244

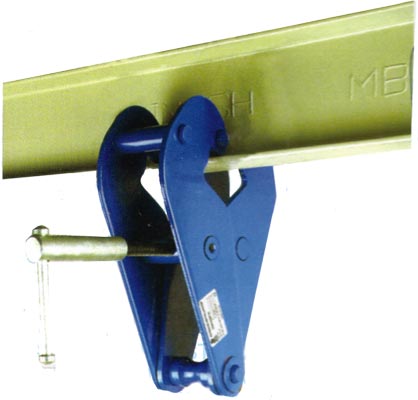

TYPEBK10203050100
CapacityT123510
Grip range A min.mm7575809090
Grip range A max.mm230230320320320
B min. (Dimensions)mm180180220220250
B max.mm375375498498514
Cmm8090117127139
Dmm5581C16
Emm2202202/1271280
F min.mm102102168168172
F max.mm160160240240242
G min.mm2928605755
Hmm2022243040
Weightkg4591118

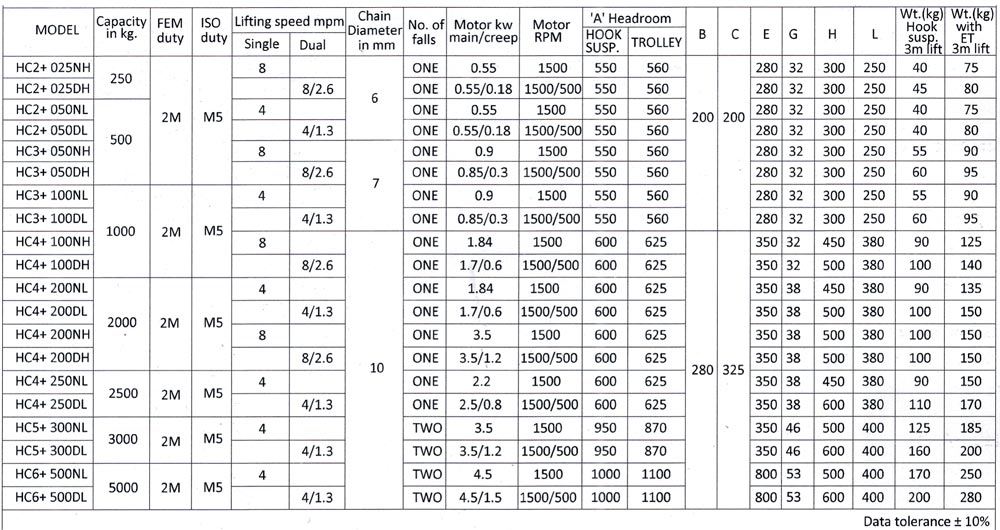

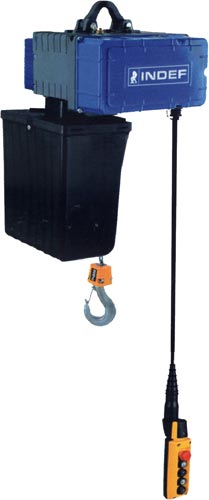

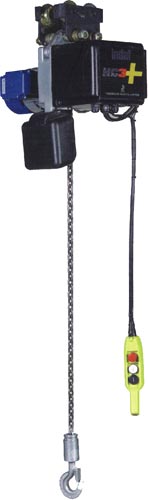

Electric Chain Hoist Model HC +

  1. Wide range : 250 kg to 5000 kg
    Readily suitable (or varied applications
  2. Rugged European Design
    Assured safety & reliability
  3. Gravity die cast gear box body & cover
    Assured improved performance & reduced dead weight
  4. Precision machine cut case hardened alloy steel gears and load chain wheel
    Long life, smooth operation
  5. Geared rotary limit switch & overload slipping clutch as standard supply
    Easy to adjust upper & lower hook positions. Protection against overloading
  6. Imported grade 80 surface hardened load chain for strength & wear resistance
    Longer chain life
  7. Robust design & built hoist brake motor
    Single speed / dual speed through VFD brake motor suitable for extreme hoist duty / inching applications

NOTE : Specification/Dimensions (mm)
All dimensions are in mm Tolerance ±10%

* Key abbreviations used in models are :
H- High Hoisting speed(8 & above) N- Single speed (Normal speed)
L- Low Hoisting speed (4 & below) D- Dual speed **
* All Dimensions in mm. Data is subjected to change without prior notice.
* Standard chain collector upto 6.0m lift (2 Fall), 12m lift Single fall only.
** Dual speed Hoisting motion is through VVFD with speed Ratio 1:10.

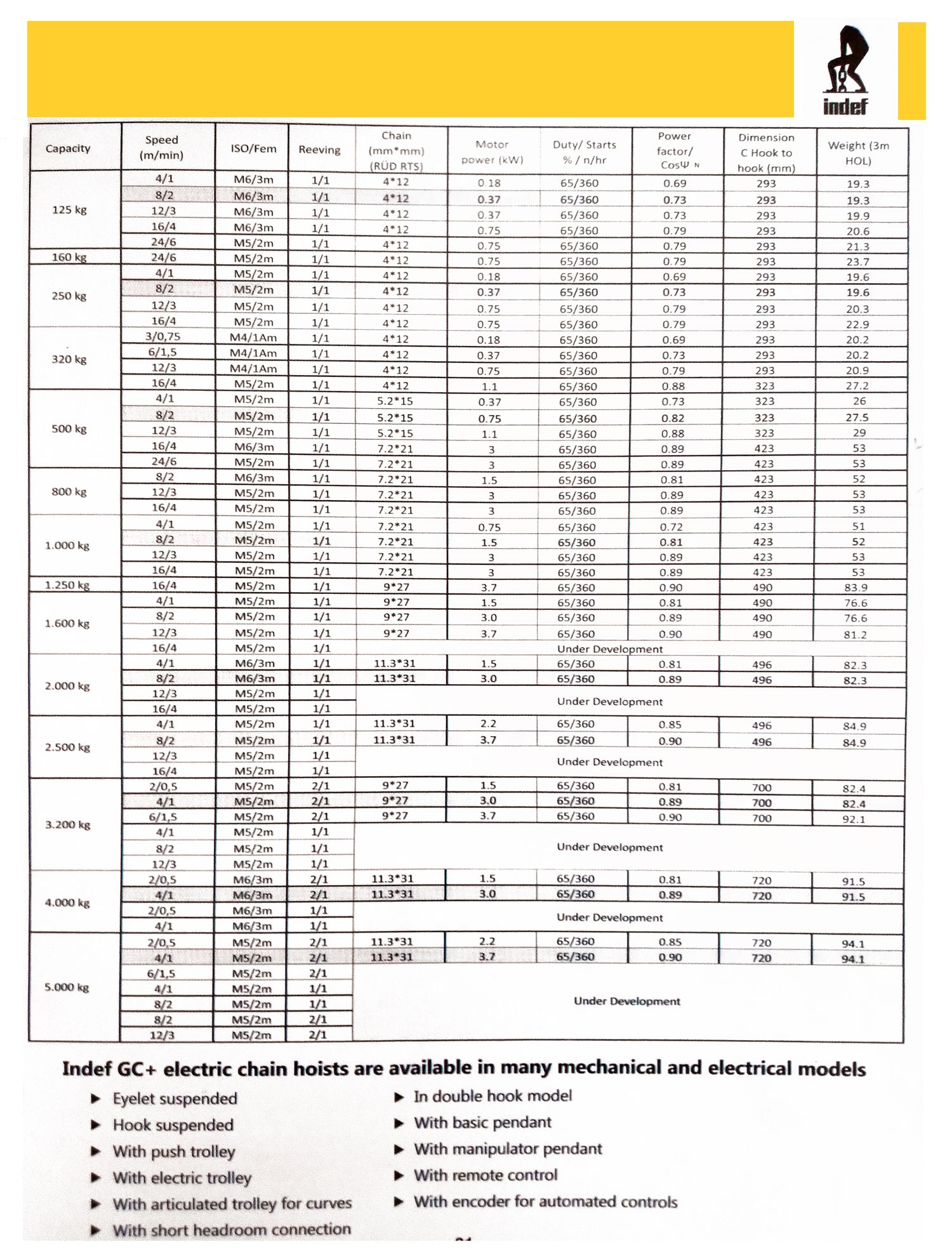

GC + ELECTRIC CHAIN HOIST

PERFECTION ACHIEVED



Innovating Technology

Design

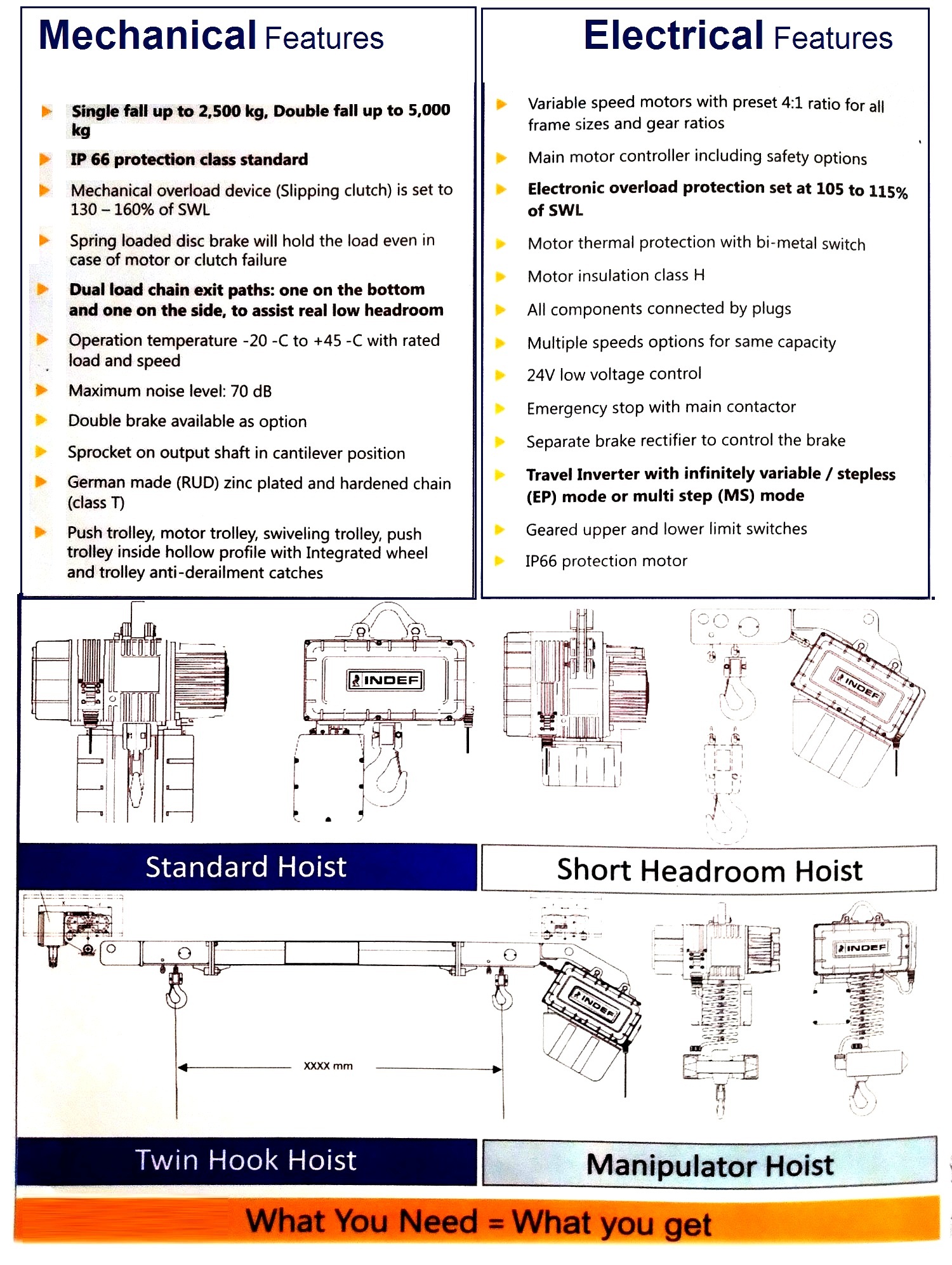

  1. Aeronautic grade magnesium alloy cover for rigidity and optimal heat dissipation
  2. High precision cast aluminium gearbox cover
  3. IP66 protection class is standard
    ► The hoist body is sealed all around and can be used under the most harsh conditions : even the motor is non ventilated
    ► Operating temperature: -20-C to +45 -C
  4. All parts are easily accessible for inspection, service and maintenance
  5. Innovative design for super low headroom chain hoist technology

Innovating Technology

Safety & Controls

  1. Safety is found in the whole drive train
  2. The slipping clutch is positioned behind the brake, the electronic overload and geared upper and lower limit switches operate before mechanical stress is applied to the hoist
  3. Motor built for 360 starts / stops per hour and with 65% CDF

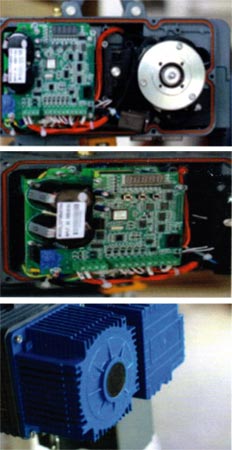

  4. The electronic control unit offers smooth operation of the hoist and protects the hoist and structure from overloads
  5. The system is perfectly adjusted to the motor characteristics and can operate without temperature rise for long periods
  6. The non ventilated motor forms an integral system with the control unit and runs with perfect current limitation

Our brand Indet is synonymous with customer requirements for LIFTING, MOVING and STORING.

Our ICRANE range of overhead material handling solutions have been specially engineered to provide optimized material handling solutions.

Big and small – our customer base spans almost all industrial sectors: name a sector and we can name a customer.

With integrated design and manufacturing, our facilities at Khopoli and Pune are equipped with contemporary manufacturing, assembly and testing facilities and has its quality systems certified to ISO 9001:2008 standards. Using state-of-the-art design methodologies, our team of engineers design robust products and solutions to support the most demanding material handling requirements.

The Indef iCrane from Hercules Hoists is a complete crane system programme for industrial environments.

Why iCrane:

The Indef iCrane range features cranes built intelligently with internationally comparable technology.



  1. Compact and optimised construction, modular design]
  2. Complete range: Hon – 70TonsSWL
  3. HHL’s proven expertise in hoisting solutions for critical applications.
  4. Assurance of safety: Latest technology safety features incorporated
  5. Intelligently Innovative International Design:
    1. Optimised design for lower dead weight resulting in structural and operating cost savings
    2. Low headroom and lesser hook approach for maximum advantage
    3. Dual speed motor/VFD for hoisting/ cross / long travel
    4. Powered by Germantechnology:
      1. Hoist gearbox and motor, travel drive gearbox and motor and modular wheel block system, designed and built in Germany
      2. Hoisting & travel gearbox drives: hardened and ground gear drive systems for smoother operations and extended life
      3. Wheel block system: compact and modular, designed for low maintenance with lifetime bearing lubrication
      4. * CT / LT drive motors: fitted with fly wheel for smooth starting and stoping
    5. Wheel rail combination is designed for long life
    6. Integrated with i:CON – Intelligent Constrol System
    7. Geared Cam Limit Switches (with encoder for VFD hoists) for hoisting & cross bar limit switch for CT & LT
    8. Cable-less power supply with Indef conductor system
  6. Designed for quick maintenance and higher uptime.



Other combinations available upon request
Our Product Programme:

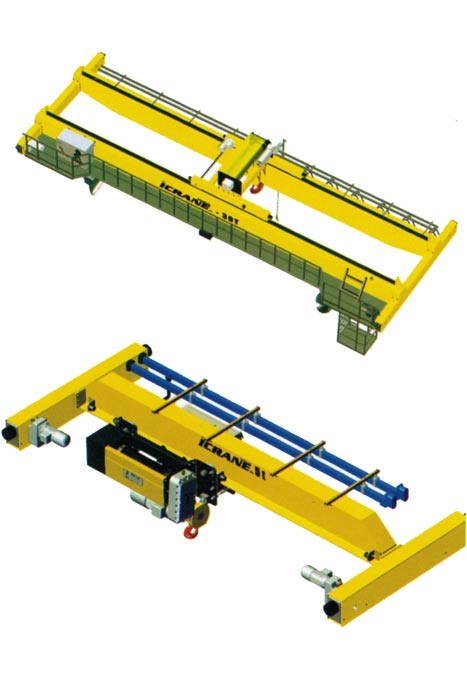

  1. Single Girder Cranes
    1. H Beam Girder Cranes
    2. Box Girder Cranes
    3. Underslung Cranes
  2. Double Girder Cranes
  3. Gantry Cranes
    1. Full Gantry Cranes (Double / Single)
    2. Semi Gantry Cranes (Double / Single)
  4. Jib Cranes

Cranes H.O.T.

The crane is designed and manufactured in accordance to IS 3177 / IS 807. Design of the crane structure as well as components/parts of the cranes are confirmed to class – I duty of the above codes.

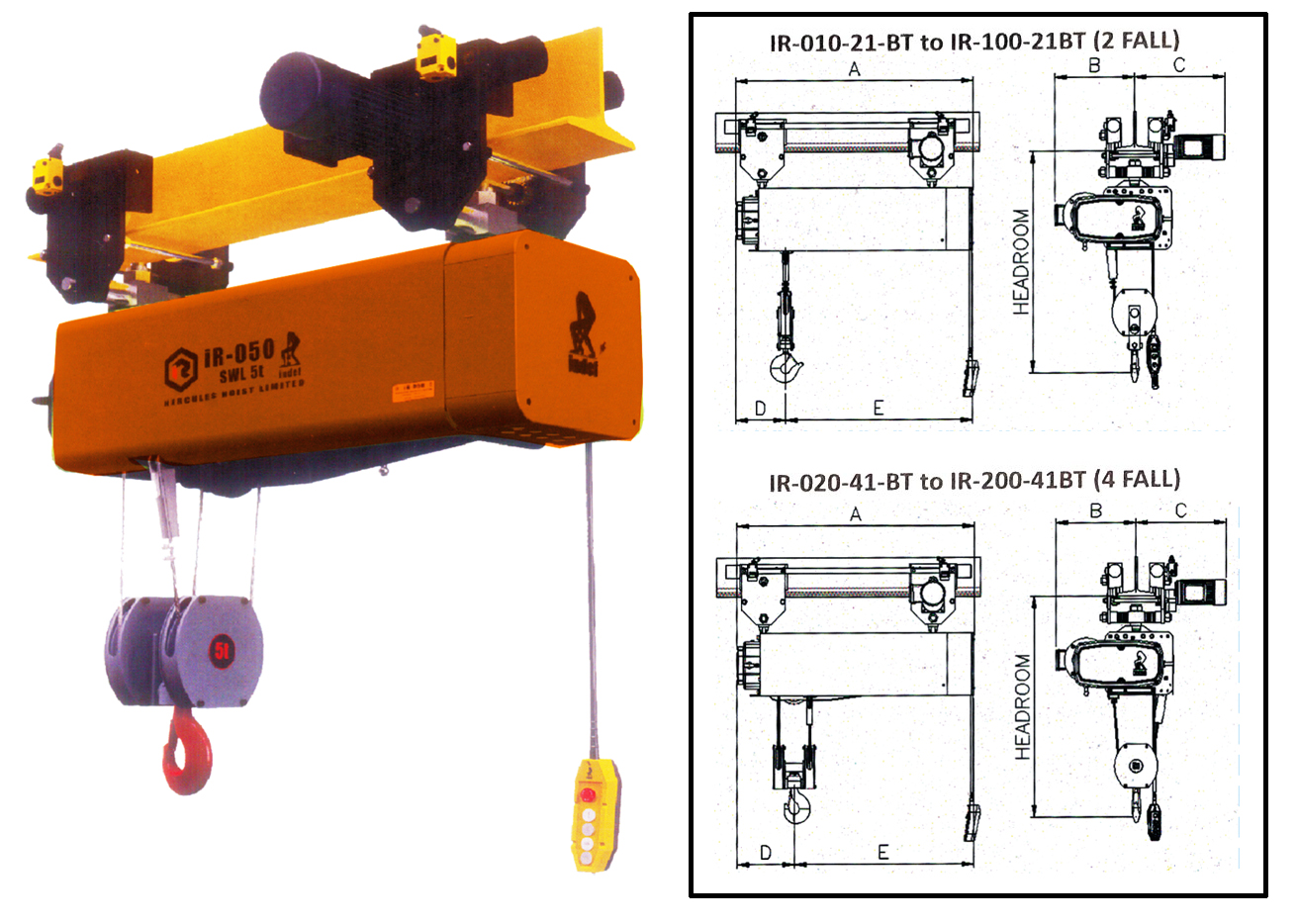

WIRE ROPE HOIST

Why Indef iR Hoist?

  1. World Class Hoist:
    Optimized design complying with international FEM Norms.
    Indef iR hoists have been designed in conformity with FEM classification 2m
    The gearbox service life is rated for more than 2000 hours at full load.
  2. Compact Modular Design
    The Indef iR rope hoist provides better side approaches enabling better utilization of the shed space
    With a modular design, maintenance is simplified enabling quick maintenance to enable high uptime of the hoist.
  3. High Performance Gearbox
    Compact, low maintenance, low noise, multistage, lube immersed gearbox directly coupled to rope drum for high efficiency
    Hardened and ground gears for long life, low noise, highly durable gearing.
  4. Economical In Operation
    Optimised motor capacities for efficient power consumption
    Light weight, robust die-cast aluminium alloy gearbox body for lower deadweight
    Directly coupled three stage shaft mounted drive directly connected to rope drum.
  5. Efficient Motor
    Efficiently designed, green technology IP 55 enclosure based, optimised motor design for low noise and low vibration operation
    Provision for thermocouple and encoder adaptation if demanded by application
  6. Flexible Design
    Design adaptable to meet customer specific requirements for components (motors, VFD, brake, wire-rope etc.)
    Optional of dual speed upgrade kit.
  7. 7. Fast Acting Brake
    Fasl action electromagnetic disc brakes for enhanced safety.
    Faclorofsafetyof 1.5
  8. Single Speed / Dual Speed Options
    Single speed standard
    Dual speed with frequency inverter on request allowing frequency ranap fm
    10% minimum to 100% y om
    Dual speed upgrade kit can be provided
  9. Protective Rope Guide
    Built with special engineering grade thermoplastic with high wear and heat resistance
    Reduced wire rope wear
  10. Overload Protection As Standard
    Overload protection integrated in the hoist for user and asset safety.
  11. One Hoist, Many Avatars
    Bogie / Fixed Trolley or Low Headroom or Foot mounted or Crab mounted execution
    Standard Execution or EX/FLP Execution
    Standard Lift (2/1 or 4/1 reeving) or True Lift (4/2 reeving)
  12. From 1t to 20t SWL.
  13. Proven Technology From A Trusted Brand
    More than 4 decades of experience in designing, manufacturing and supporting electrical hoists covering more than 2,00,000 units.
  14. Indef Sales And Service Within Immediate Reach
    Accessible sales and service support from more than 50 Authorised Business
    Partners providing stock, sale and service facilities and more than 100 authorised retailers all over India

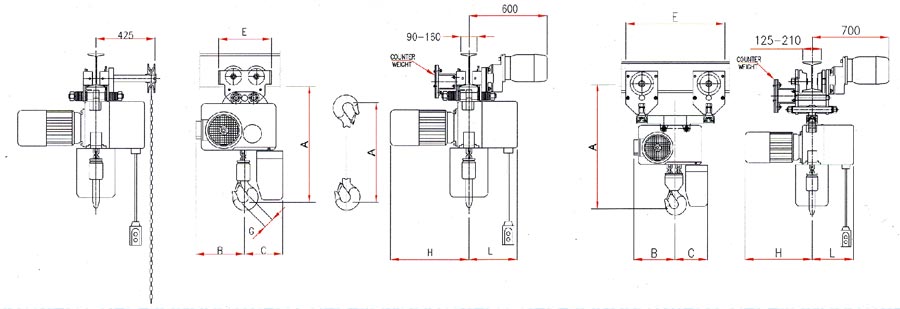

Hoist Model

Capacity

Design
Duty
Class

Reeving

lifting
Speed

Hoist
Motor

Head
Room

Rope
Dla.

Monorail Beam

Cross Travel



ton

FEM

No. of
Falls

MPM

kW

mm

mm

Width
Range
mm

Thickness
mm

kW

MPM

Wheel
Dia mm





















KWx
number of
motor





IR-010-21-BT

1

2m

2

6

1.3

1050

8

90-180

20

0.37 x 1

17

140

IR-020-41-BT

2

2m

4

3

1.3

1050

8

90-180

20

0.37×1

17

140



























IR-016-21-BT

1.6

2m

2

7

2.5

1050

8

90-180

20

0.37×1

17

140

IR-032-41-BT

3.2

2m

4

3.5

2.5

1050

8

150-210

20

0.37×1

17

140



























IR-020-21-BT

2

2m

2

6

2.5

1050

10

90-180

20

0.37×1

17

140

IR-040-41-BT

4

2m

4

3

2.5

1050

10

90-180

20

0.37×1

17

140



























IR-025-21-BT

2.5

2m

2

8

4.1

1250

10

125-210

20

0.37×1

17

140

1R-050-41-BT

5

2m

4

4

4.1

1250

10

125-210

20

0.37×1

17

140



























IR-050-21-BT

5

2m

2

8

8.1

550

13

125-210

20

0.37×1

17

140

IR-100-41-BT

10

2m

4

4

8.1

550

13

125-210

25

0.37 x 2

17

160



























IR-063-21-BT

6.3

2m

2

8

10.S

1600

13

125-210

20

0.37 x 1

17

140

IR-125-41-BT

12.5

2m

4

4

10.5

1600

13

125-210

20

0.55×2

17

160



























IR-075-21-BT

7.5

2m

2

7

10.5

2000

16

125-210

25

0.37 x 2

17

160

IR-150-41-BT

15

2m

4

3.5

10.5

2000

16

125-210

25

0.55×2

17

140



























Note :

  1. Above dimensions are applicable for single speed hoisting/lowering & cross travel motions only.
  2. All dimensions are in mm
  3. All dimensions are with in.± 5% of specified dimensions
